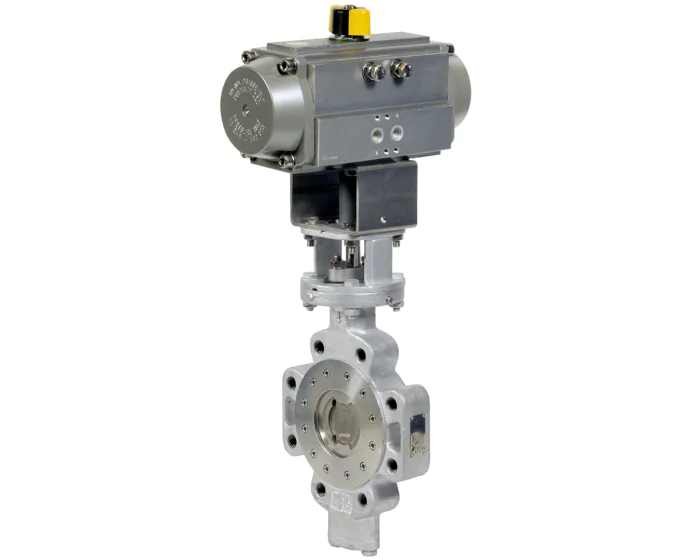

The 1118 triple offset butterfly valve has a carbon steel body, a stainless steel disc and a Gr. 6 stellite seat. Fire safe to API 607. ALPHAIR pneumatic actuator. PS: 40 bar, TS: -39/+349°C. Between flanges LUG PN40.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN100 - 4'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Connections | Between flanges PN40 |
| Seats | PTFE-Graphite |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Triple offset |
| Wafer/lug | Lug |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN100 - 4'' Double acting | 260803017011R | S1000091 |
€3,526.26
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN100 - 4'' Spring return | 260803017114R | S1000092 |
€4,244.36
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN150 - 6'' Double acting | 260805017013R | S1000093 |
€6,160.80
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN150 - 6'' Spring return | 260805017116R | S1000094 |
€7,374.60
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN200 - 8'' Double acting | 260806017014R | S1000095 |
€8,676.16
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset DN200 - 8'' Spring return | 260806017118R | S1000096 |
€11,076.39
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset Double acting DN250 - 10'' | 260807017015R | S1000097 |
€8,815.26
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset Spring return DN250 - 10'' | 260807017117R | S1000098 |
€12,145.37
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset Double acting DN300 - 12'' | 260808017018R | S1000099 |
€12,480.51
(excl. btw)
|
add to cart |
| Between flanges PN40 Carbon steel A216 WCB (1.0619) Triple offset Spring return DN300 - 12'' | 260808017117R | S1000100 |
€15,029.60
(excl. btw)
|
add to cart |
